MediaTek
T930
Powerful Sub-6GHz R18 Platform for 5G Fixed Wireless Access and Mobile Hotspot Devices
MediaTek
5G Broadband Family
FWA Performance
Improvement (L4S)
5G Uplink
Enhancement (3Tx)

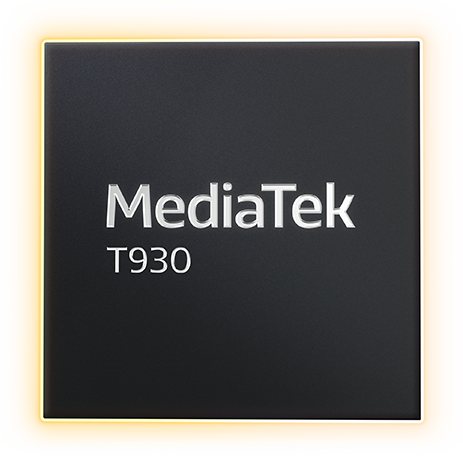

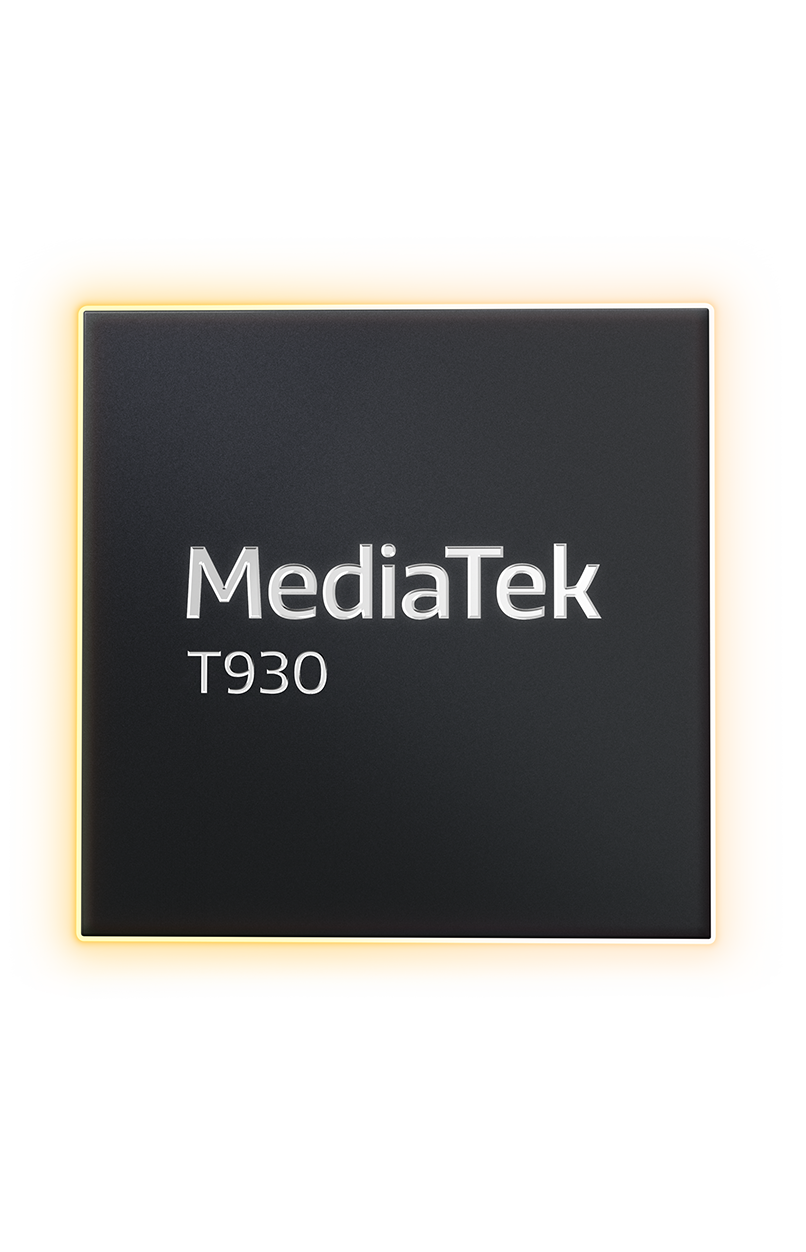

MediaTek T930
The MediaTek T930 is a flagship R18 5G-Advanced modem for FWA, and mobile hotspot (MiFi) devices. The platform includes quad-core Arm Cortex-A55 CPU with hardware‑based network acceleration engine, RF transceiver, GNSS receiver, power management chip, plus multi-gigabit Ethernet and Wi-Fi 7/8 options.
The platform can be partnered with a NPU to create a novel Generative-AI network gateway device for secure, personalized hybrid AI computing.
- MediaTek T930 provides 5G speeds up to 10Gbps, allowing operators to express the advantages over most fixed line services, while using their already installed cellular infrastructure for additional revenue streams.
- ODMs/OEMs can take advantage of MediaTek’s global platform and comprehensive resources that reduce development costs, providing time-to-market advantages.
- For users, the T930 provides superfast internet services from a compact device that they can self-install, avoiding the hassles of lengthy installation times, with freedom to place it anywhere in the property instead of being limited to within reach of a phone or fiber line.
Key Features
The MediaTek T930 provides sub-6GHz 5G speeds of up to 10Gbps (6CC-CA) and first-to-market modem optimizations listed below that enable it to greatly exceed the performance and capabilities of most 5G FWA alternatives.
- First 8Rx with 3CC / 200MHz bandwidth that delivers a 40% effective increase in spectrum efficiency at the cell edge, thereby extending signal coverage range by approximately 40%.
- First 5-layer 3Tx with 3CC, providing up to 2.8Gbps UL performance.
The MediaTek T930 supports the latest 3GPP Rel-18 specifications, including MediaTek-driven L4S and 3Tx FWA optimizations defined in Rel-18, giving product designers confidence that they are backed by the latest global standards when creating next-generation equipment.
The MediaTek T930 integrates a dedicated Network Processing Unit for hardware QoS acceleration. It delivers full-performance throughput between 5G cellular and Ethernet or Wi-Fi without CPU involvement, ensuring high performance and enhanced power efficiency.
MediaTek’s second-generation intelligent modem with integrated AI recognizes usage patterns and network environments, optimizing connectivity to maximize performance.
Powered by an advanced 4nm process, the T930 delivers exceptional power efficiency. Connectivity is taken even further with a dedicated network engine and the innovative MediaTek 5G UltraSave technology.
Specifications
Processor
CPU Types
Arm Cortex-A55
Max CPU Frequency
2.3GHz
Cores
Quad (4)
Memory & Storage
Memory Type
LPDDR4x / LPDDR5
Storage Type
nMCP suggested
SPI, eMMC 5.1 and ONFI supported
Local Connectivity
Wi-Fi / Bluetooth
MediaTek Wi-Fi & Bluetooth combo solutions available
Ethernet
1/2.5/5/10GbE
Peripheral Interfaces
Key Peripheral Interfaces
- 3x PCI-Express for connection to Wi-Fi / Bluetooth combo chip
- USXGMII for connection to external LAN switches
- 1x PCM/SPI for connection to external SLIC for RJ11 phone ports
- 1x USB 3.2 Gen-2
Cellular Connectivity
Cellular Technologies
- Sub-6 (FR1)
- 5G up to 6CC-CA
- 4G-CA
- FDD & TDD
Specific Functions
SA & NSA modes; SA Option2, NSA Option3 / 3A / 3X; DL 6CC up to 400 MHz; DL/UL 256QAM
Peak Download Speed
Up to 10Gbps (SA)
Peak Upload Speed
2.8Gbps (SA)
GNSS
- GPS L1CA+L5
- Galileo E1 + E5a + E5b
